DH series
Back NEXT
Product Description

    The planetary gearbox has been developed specifically for all application,which is an ideal alternative to our DM and DA series.

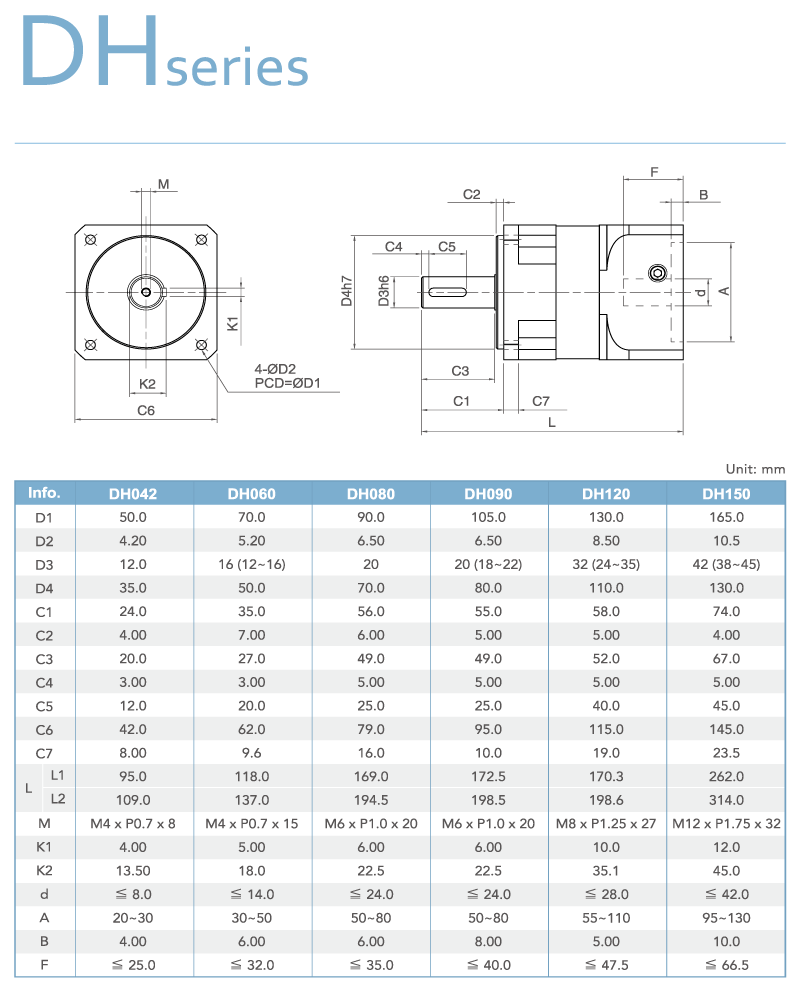

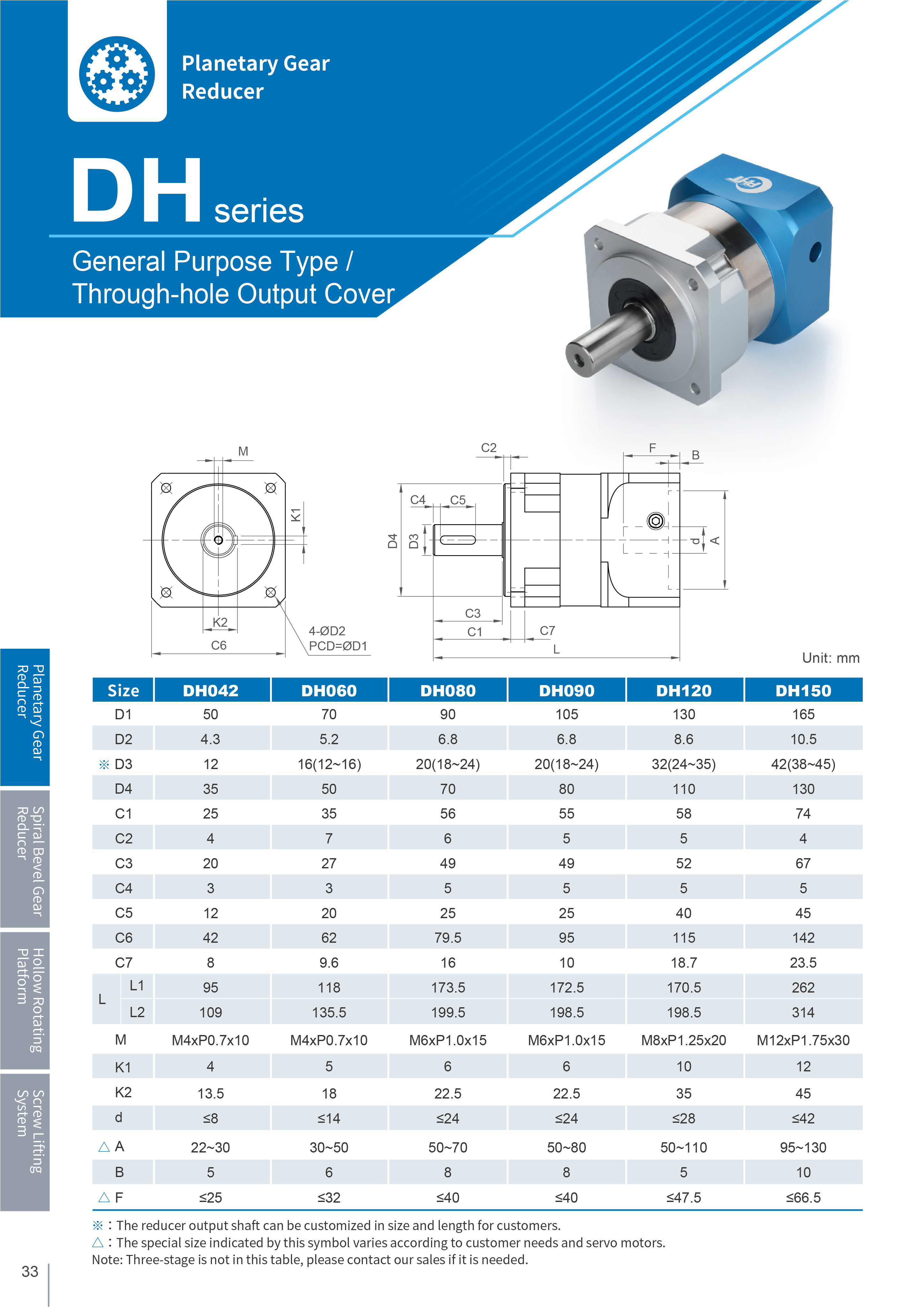

  • Product Size
  • Product Feature

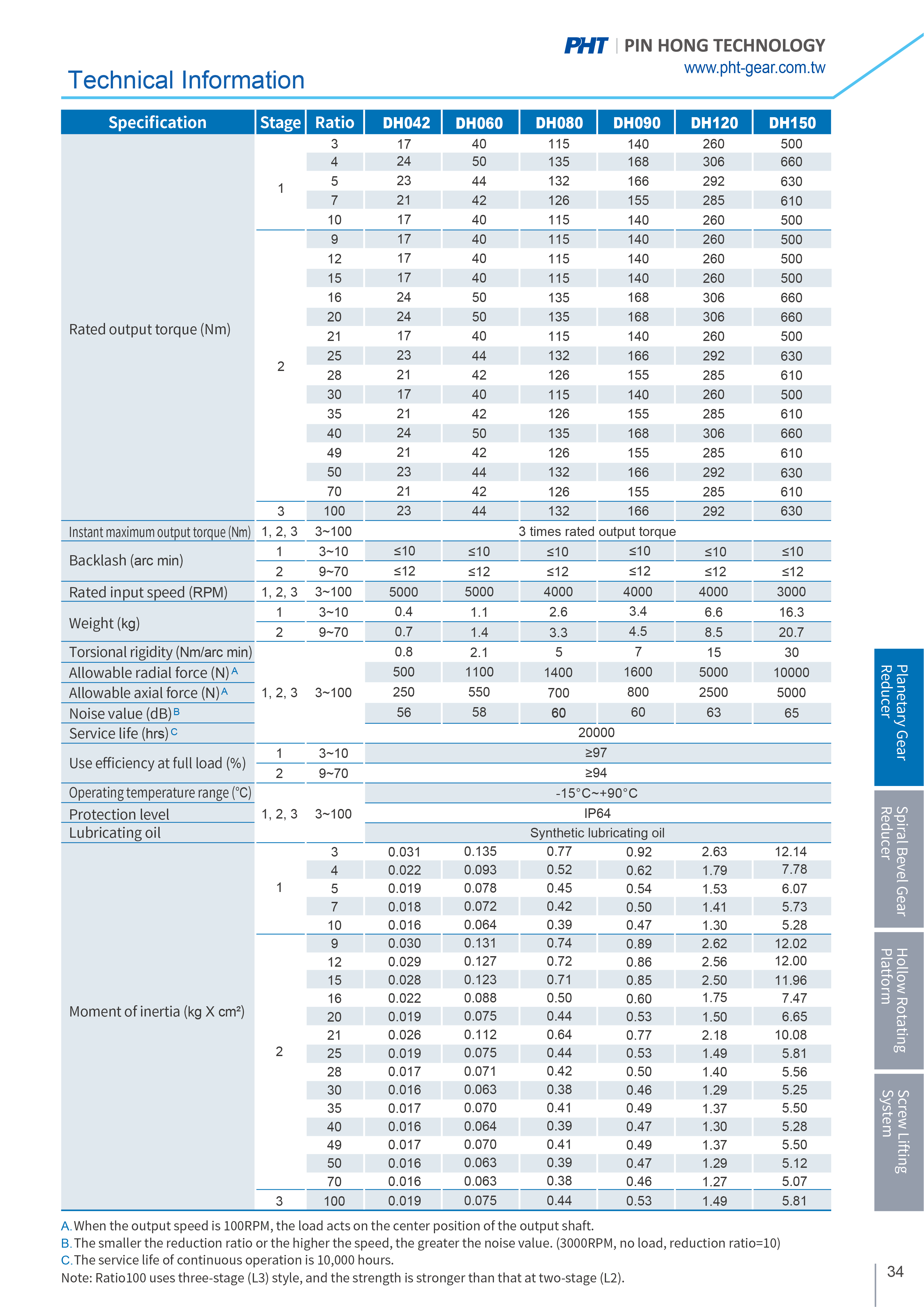

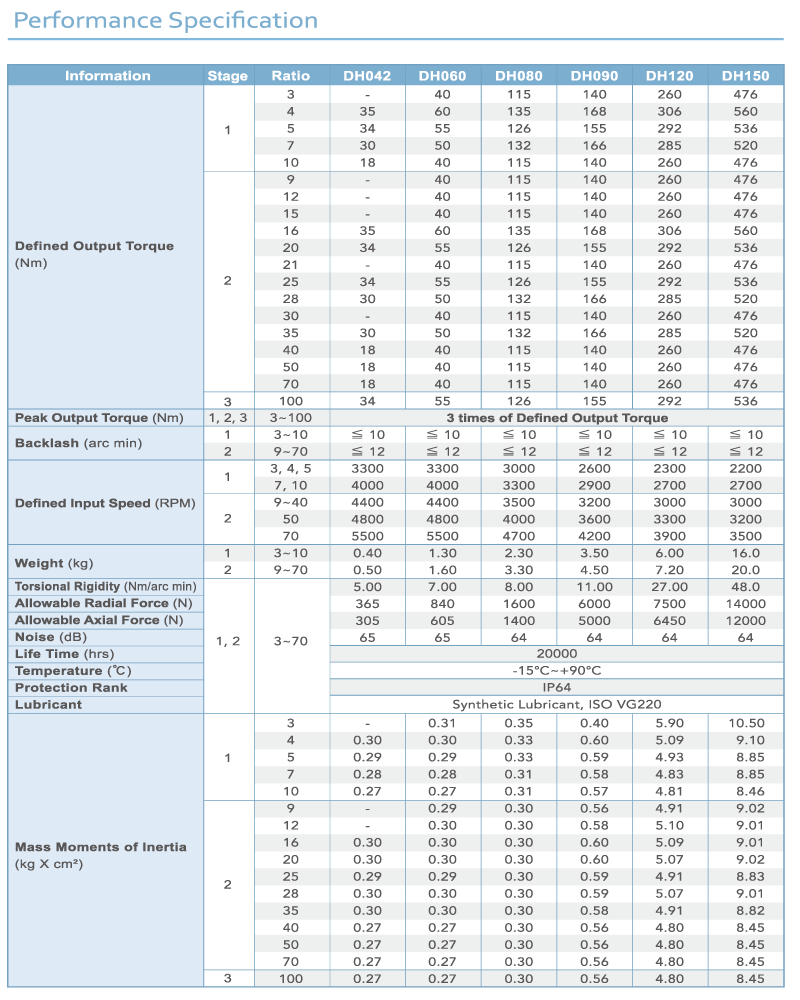

  • Product Specification
  • Product Advisory
  • Download
  • Gearbox Application From

  • Country

  • City:

  • Contact Person:

  • E-mail:

  • Address:

  • Tel:

  • Fax:

  • Mobile:

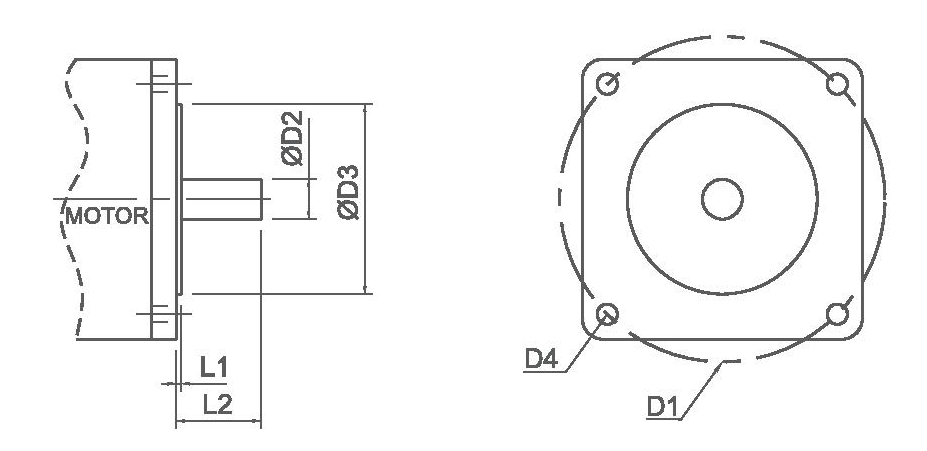

  • Motor specifications

  • Unit:

    mm in
    Do not know the motor specifications can be directly noted in this column motor brand and model

  • Bolt Circle Diameter(D1):

  • Pilot Thickness(L1):

  • Hole Diameter(D4):

  • Pilot Diameter(D3):

  • Shaft Diameter(D2):

  • Shaft Length(L2):

  • PHT | Planetary Gearbox
  • Gearbox specifications

  • Gearbox model:

  • Ratio:

  • Backlash:

  • Current Quantity:

  • Please provide any additional information below:

    •

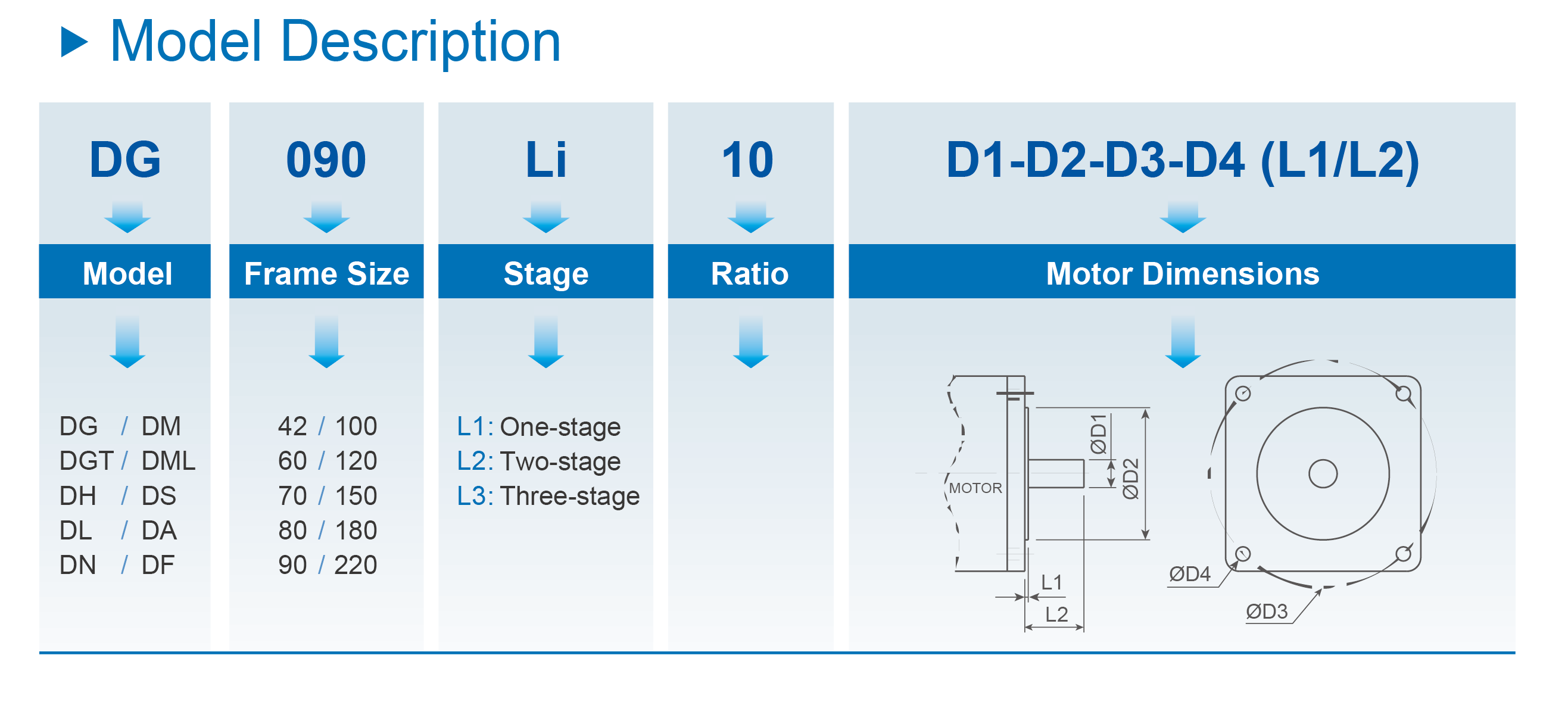

  • Model
    STEP
    CAD
    PDF
  • DH042-L1-XX-8-30-46-M4_2024
  • DH042-L2-XX-8-30-46-M4_2024
  • DH060-L1-XX-14-50-70-M4_2024
  • DH060-L2-XX-14-50-70-M5_2024
  • DH080-L1-XX-19-70-90-M6_2024
  • DH080-L2-XX-19-70-90-M6_2024
  • DH090-L1-XX-19-70-90-M6_2024
  • DH090-L2-XX-19-70-90-M6_2024
  • DH120-L1-XX-22-110-145-M8_2024
  • DH120-L1-XX-24-110-145-M8_2024
  • DH120-L2-XX-22-110-145-M8_2024
  • DH120-L2-XX-24-110-145-M8_2024
  • DH150-L1-XX-35-114.3-200-M12_2024
  • DH150-L1-XX-42-114.3-200-M12_2024
  • DH150-L2-XX-22-110-145-M8_2024
  • DH150-L2-XX-24-110-145-M8_2024
  • DH150-L2-XX-35-114.3-200-M12_2024
  • DH150-L2-XX-42-114.3-200-M12_2024
  • DH150-L3-XX-35-114.3-200-M12_2024
